Product

1인용 / Single Side
KK-011AS

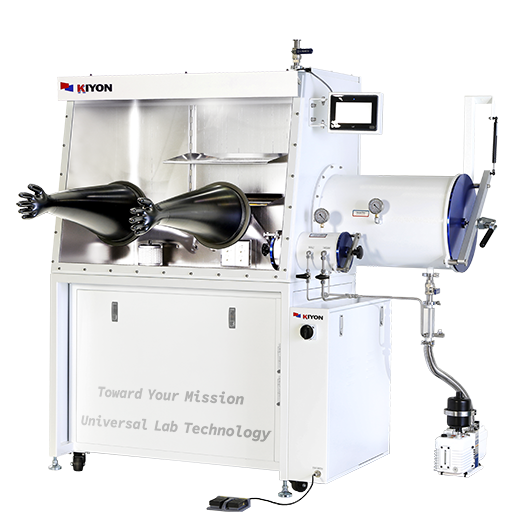

  • KK-011AS / 1인용, 2-Port Glovebox
    [Key Features]

  • 글로브박스내 산소 및 수분 함유량 1 ppm 미만 유지
  • 산소 및 수분 흡착/제거능력 : 수분 최대 80L, 산소 최대 2,500g
  • 글로브박스 내부 전해연마로 불순물 완벽 제거
  • 글로브박스 내부 반입 장비/물품 중량 150Kg까지 가능, 150kg 초과시Rib 보강
  • 산소, 수분, 압력, 이상 알람 등 데이터 로깅 가능 (USB 타입)
  • 정제장치 (Purifier) 전자동 재생 기능
  • 사용자 편의를 위한 인체공학적 설계
  • 각종 안전사양 및 자동화 사양 추가 가능
  • 전력소모 최소화를 위한 ECO Mode
  • AS 서비스


  • [Specification]

Basic Composition
Size

1,200(L) x 900(H) x 780(D) mm

Material

SUS304

Windows

Poly-Carbonate PC or Safety Glass

Glove

Butyl Rubber 1 Pair

External Light

1ea(LED)

Service Port

KF(NW40): 2ea

Leak Test

0.05 vol%/hr According to ISO 10648-2


Antechamber
Size

390 x 600 mm

Vacuum Capacity

1 x 10-3 torr

Tray

220 x 580 mm

Mini-AntechamberSize

150 x 290mm


Purifier System
Purifity Level

Less than 1 ppm O2 and H2O

Catalyst

Oxygen Catalyst and Molecular sieve

PLC

Automatic PLC control

Control Panel

7˚Full Color Touch Screen

Purifier Regeneration

Auto Regeneration programmed on PLC

Blower Speed Control

1/4 HP

Vacuum Pump

180 ℓ/min

StandSize

1,200(L) × 936(H) × 780(D) mm
