백신보관용 냉동고 제품소개

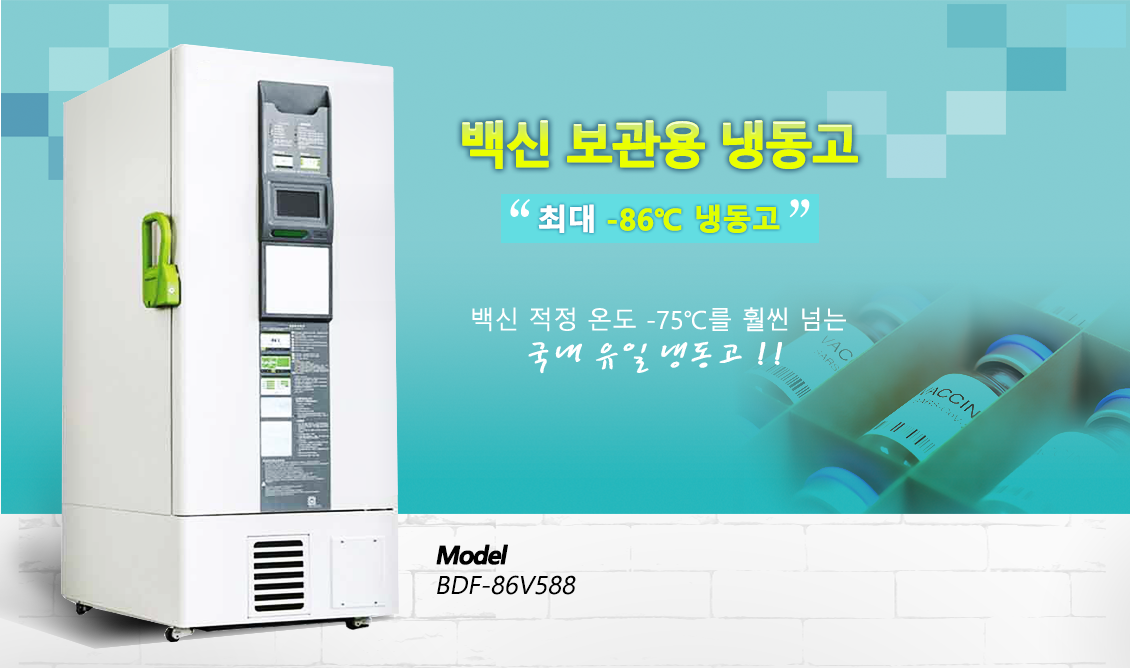

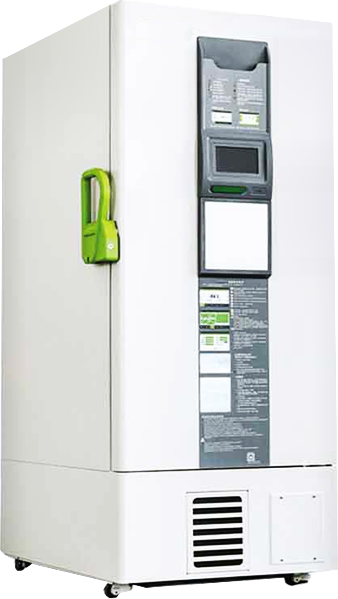

  • 백신보관용 냉동고
  • BDF-86V588



"최대 -86℃ 냉동고"

백신 적정 온도 -75℃를 훨씬 넘는 국내 유일 냉동고!

가로라인

백신 보관용 냉동고
Technical Parameters

Technical Parameters

Model

BDF-86V588

Extermal Size (W*D*H)mm

891*1155*1994.5

Internal Size (W*D*H)mm

606*738*1310

Capacity

588L

Type

Vertical

Temp.Range

-40℃~ -86℃

Temp.Accuracy

0.1℃

Control System

Microprocessor control, LCD touch screen

Audio and Visual Alarm

High and low temperature, Sensor failure, Door ajar, Power failure, Voltage abnormal, Ambient temperature abnormal, Low voltage, Filter blocking

Refrigeration Type

Direct refrigeration

Refrigerant

Mixture refrigerant

Compressor

2sets

Condenser & Evaporator

Made of copper

Construction

Structure

Unibody design & Mono-assembly foaming (Rigid polyurethane insulation material)

Internal Material

SS 304

External Material

Cold-rolled steel with anti-bacteria powder coating

Door

Lockable door

Caster

4 casters

Chamber withinner Door

2

Temp. Test Port

1, φ25mm

Consumption

815W

Power Supply

AC110V ±10%, 50/60Hz

Standard Accessory

USB port

Optional Accessory

Storage Racks

16 racksL5*5

and Boxes

400 boxes

Package Size (W*D*H)mm

970*1138*2185

Gross Weight

363.5kg
